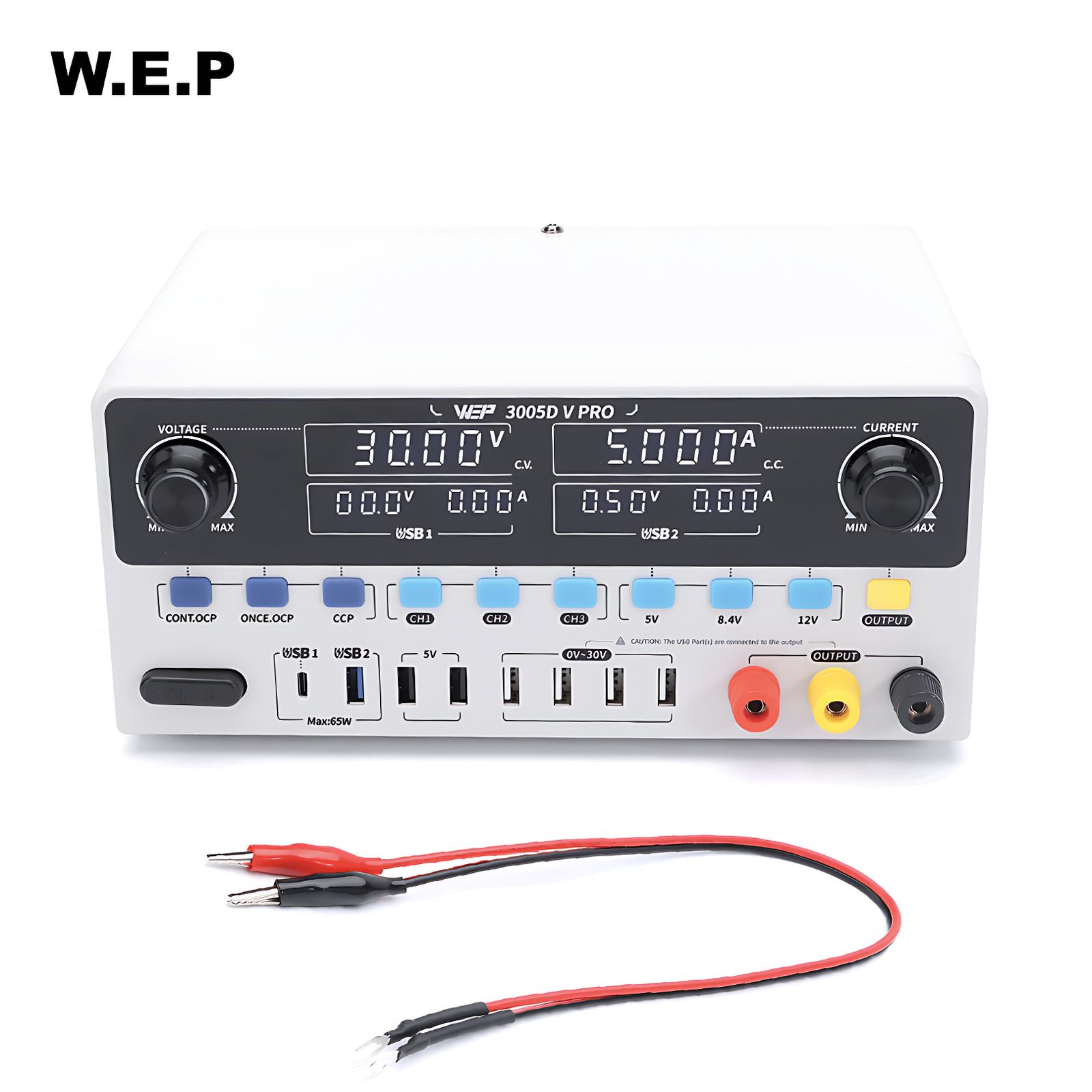

Informasi Produk WEP 3005D-V Pro Adjustable Digital Power Supply 30V 5A 3 Quick-Access Output Channel Type-C Max 65W
Features:
1.The voltage regulation is highly stable with great load capacity and low ripple. This power supply comes with a complete set of functions including short circuit protection, overcurrent protection and over-heat protection functions.
2.This power supply uses a toroidal transformer, minimizing losses and reduced heat generation.

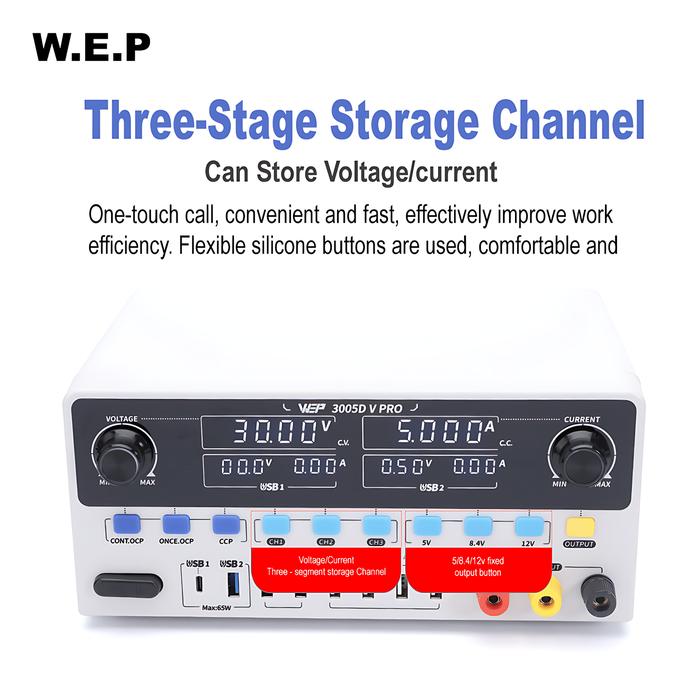

3.The product is equipped with ports with quick-access non-adjustable voltages of 5V, 8.4V, and 12V, as well as three pre-set channels to switch among multiple voltage settings quickly.

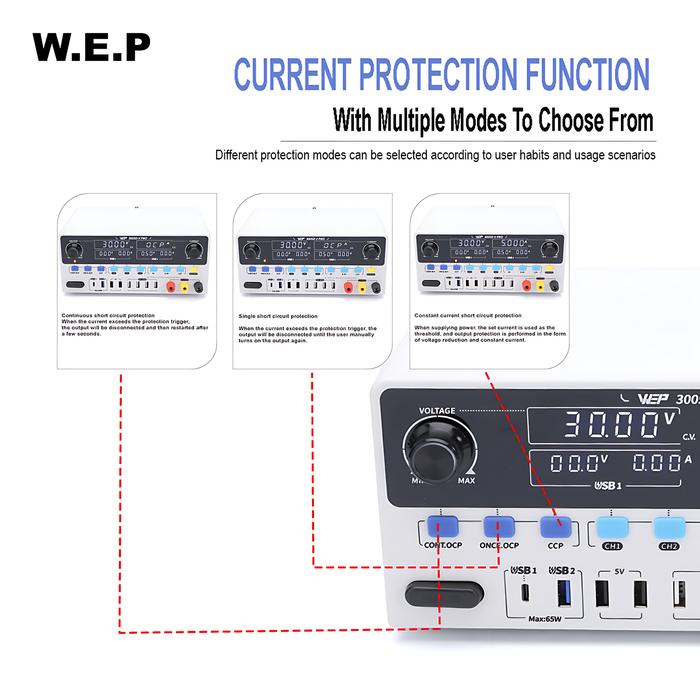

4.The product offers modes including constant current output, overcurrent auto-stop, and overcurrent auto-resumption mode. Users can choose the appropriate mode based on their applications.

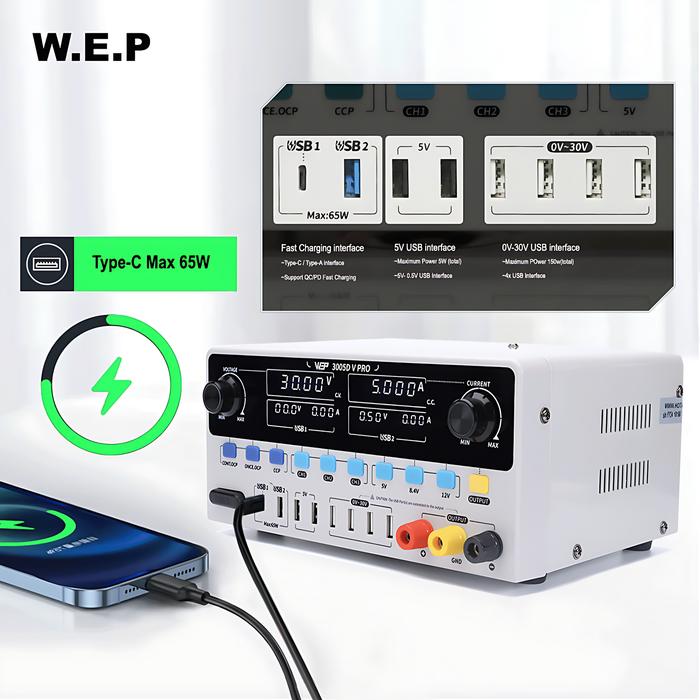

5.The product comes with 65W quick-charge port, 40W quick-charge port and 4 USB ports in parallel with the 30V output. Connect the load to the correct rating to prevent damaging the device.
Applications
This regulated DC power supply is developed specifically for scientific research, product development, test labs, schools, electronic assembly lines, and electronic repairs.
3005D-V PRO
Specifications
Rated voltage range:220V-240V~
Rated Frequency:50Hz
Rated power :330W

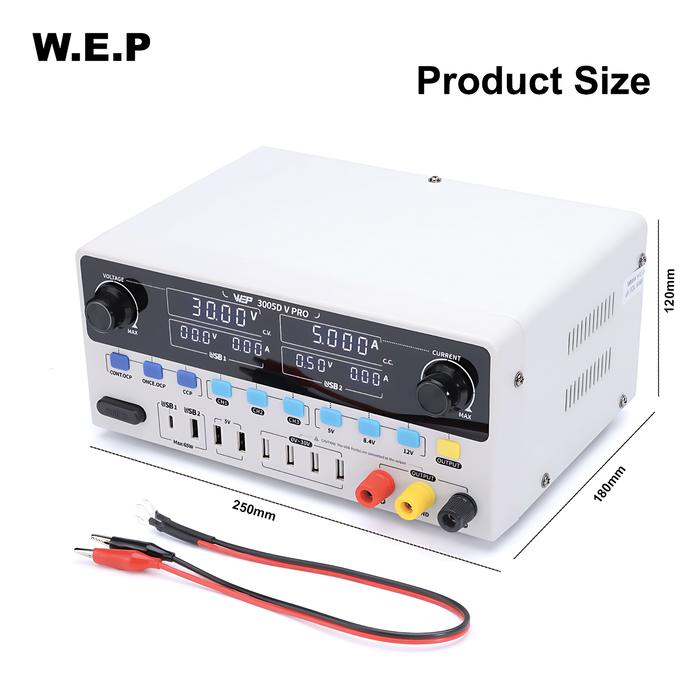

Main unit dimensions:L×W250×H117mm ±10mm
Operating ambient Temperature:-10℃~40℃/14℉ ~104 ℉
Relative humidity ＜90%
Output voltage:DC 0~30V
Output power:150W
Accuracy (Voltage):Accuracy (Current):Load regulation Ripple VrmsOutput current:0-5A

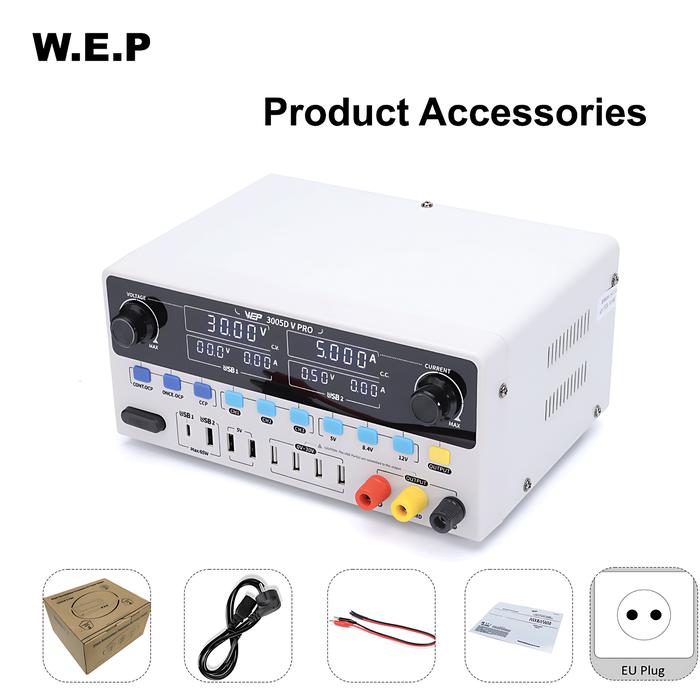

Kelengkapan Produk
1xWEP 3005D-V Pro Adjustable Digital Power Supply 30V 5A 3 Quick-Access Output Channel Type-C Max 65W
1xKabel Hitam Merah
1xKabel Power
1xManual Book
