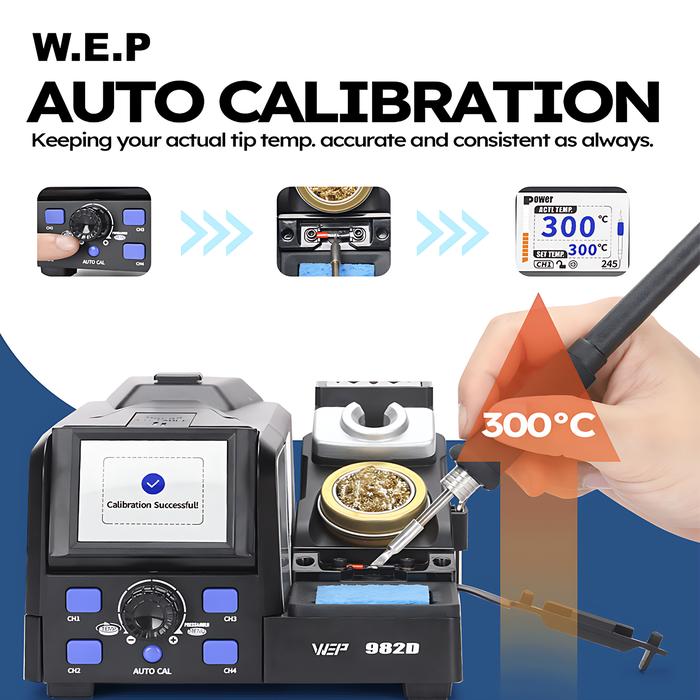

Informasi Produk WEP 982D Precision Soldering Station 150W 2S Heating C245/C210 Auto Calibration
Applications

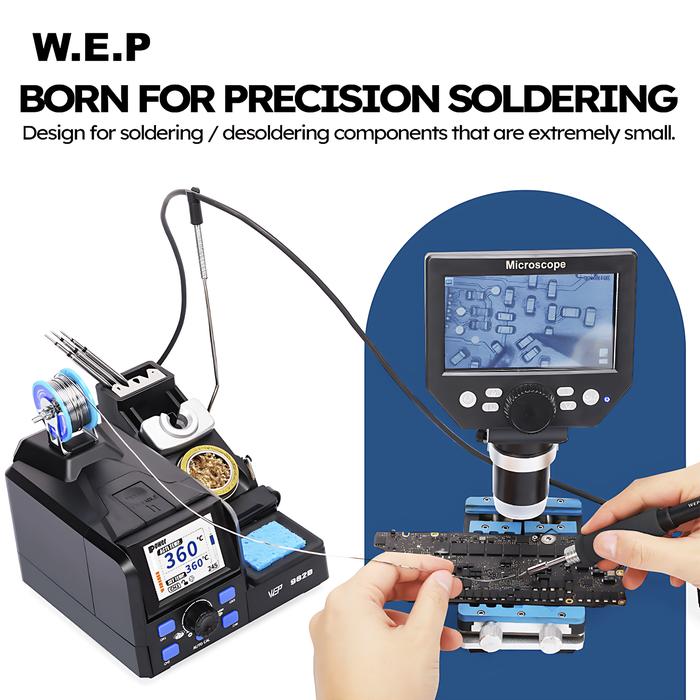

This unit is suitable for de-soldering and soldering operations on various surface-mount components and through-hole components, such as SOP, DIP, SOIC, etc.
Maintenance & Precautions
1.If a layer of oxidization forms on the surface of the soldering iron tip, a misconception can be created that the tip cannot heat u property to melt the solder and do the tinning. However, the actual temperatures of both the heating element and the tip are high. In such an instance, please do not increase the temperature value further but use a metal wool ball to remove the oxidization
following the steps below:
A. Set the temperature to 300°C (572°F) a
B. Once the temperature stabilizes, gently rub the soldering iron tip inside the metal wool ball.
C. When the oxidization is partially removed, continue applying solder onto the soldering iron tip while rubbing it until the tip is completely coated with solder. s too severely oxidized beyond cleaning, replace it with a new one.
2. DO NOT use metal files to remove the oxidization on the soldering iron tip. If the soldering iron tip deforms or rusts, replace the soldering iron tip with a new tip.
3. DO NOT apply excessive force on the soldering iron tip when soldering. This will not improve the heat transfer and damage the soldering iron tip instead.
4. Clean the soldering iron tip after use and tin the tip with a new layer of solder to prevent oxidization.
5. Clean the Residue Tray (Rear)_
Please clean the residue tray(Rear) when the station is disconnected, fully cooled and the residue tray (Front) is empty.
5-1 Remove the solder dispenser, cleaning sponge, soldering iron and heating element inside the groove (For Heating Element Change)
5-2 Place the station sideways and unscrew the locking screw to the residue tray (Rear). Remove the tray to clean the residue inside the tray.
5-3 Install the residue tray (Rear) and tighten the locking screw. the sensor module: Unscrew the locking screw to remove the original sensor module. Please note to connect positive and negative ends correctly before installing the new sensor module and tightening the locking screw.
6.Change the sensor module: Unscrew the locking screw to remove the original sensor module. Please note to connect positive and negative ends correctly before installing the new sensor module and tightening the locking screw.
Troubleshooting
"Heating Element Disconnected!" - This is an indication that the station's sensor module is faulty. You need to replace the heating element (the heating element and the sensor modules). Or, the soldering iron/heating element is not connected.
Kelengkapan Produk

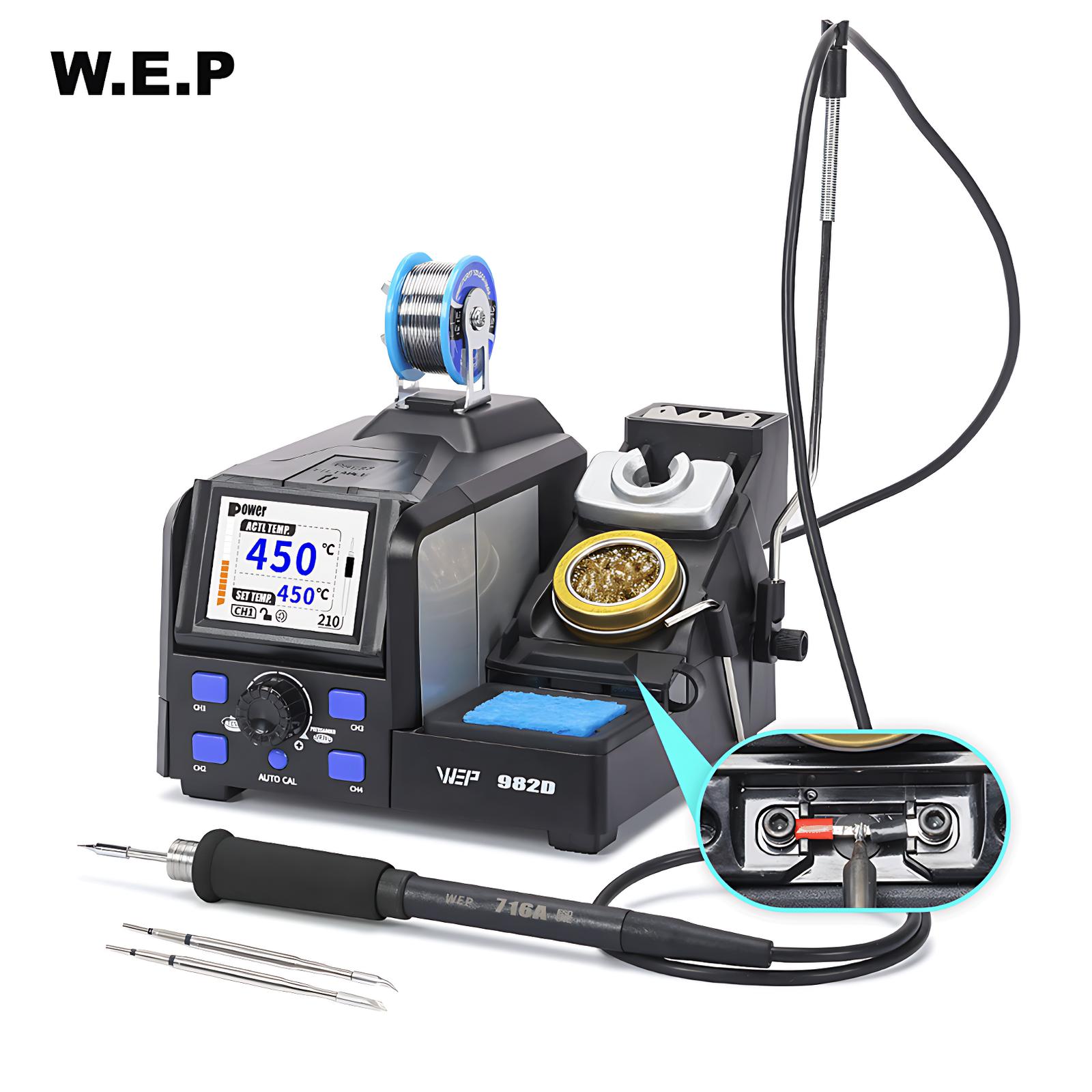

1xWEP 982D Precision Soldering Station 150W 2S Heating C245/C210 Auto Calibration

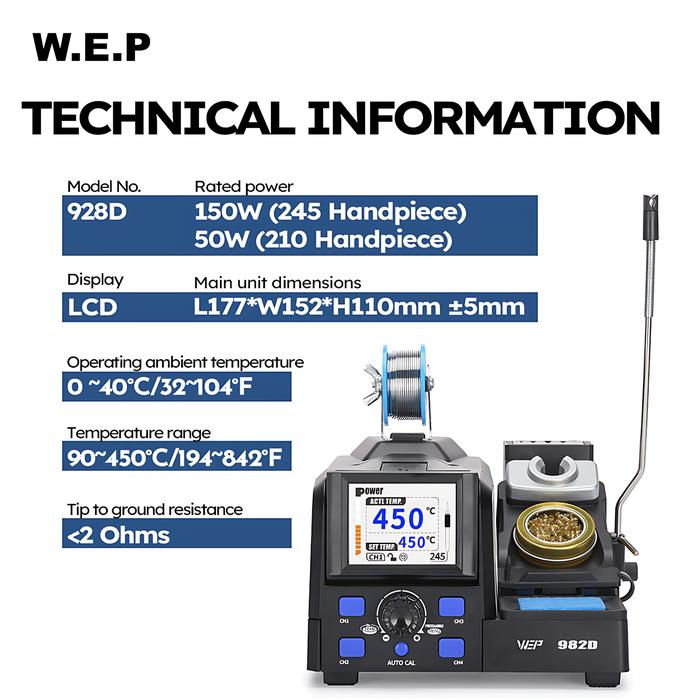

Specification
Rated voltage range 220v-240v
Rated power 50w

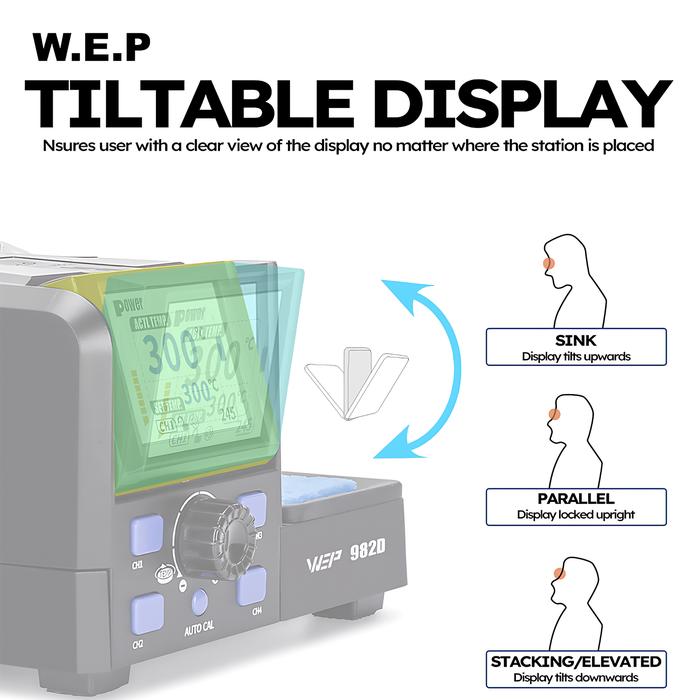

Display LED
Operating ambient temp. 0C~40C/32F~104F
Operating ambient temp. 90C~450C/194F~842F
